Battery Capacity Voltage Monitor Gauge Indicator for 12V 24V 36V, Front Setting and Switch Key, Lead-Acid& Lithium Battery Tester

• Suitable for various battery types - DEFAULT 48 volt lead acid battery, you can install DIRECTLY. And the battery tester is also suitable for 12V/24V/36V/48V/60V/72V/84V lead acid battery, Ternary Lithium battery, Polymer lithium-ion battery, 3-28 series Lithium ion battery, Storage battery, Water battery and 4-28 series Lithium Iron Phosphate battery
• Universal battery status monitor - wide working voltage input range DC 12V-84V.Can be automatically detect to the accurate capacity according to the battery voltage

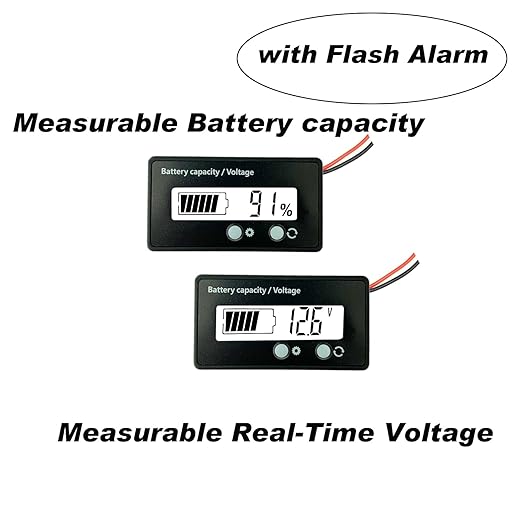

• 3 in 1 battery voltage meter - with a switched function button to choose the battery capacity, real-time voltage or turn on and off; New alarm function, when the battery capacity is lower than 20%, the screen display will flash to alarm
• Sensitive LCD digital display - the small battery voltage reader with a PVC waterproof screen protector on the front, clear and bright white backlight LCD display from any angle, the low working power consumption is 5mA (max)

The flash alarm function would remind you if the battery capacity is lower than 20%.

Technical Parameters:
Working voltage: DC 12-84V
Working current: <5mA
Working temperature: 0℃-40℃
Display: capacity/voltage
Voltage accuracy: 1%
Backlight: White
Material: ABS

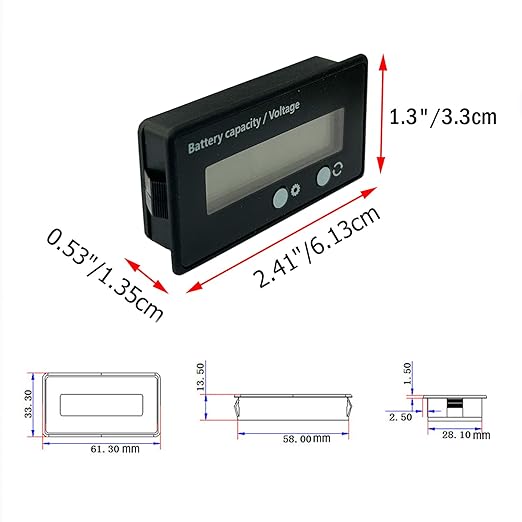

Product dimensions(W x D x H): 2.41"x1.31"x0.53"/ 61.3x33.3x13.5mm
Mounting hole dimensions(W x D)：2.3"x1.12"/ 58.5x28.5mm
                   Applicable battery specification:
Lead-acid battery 12V, 24V, 36V, 48V, 60V, 72V, 84V
Lithium-ion battery 3-28series
Lithium Iron Phosphate battery 4-28series
                 Applicable battery type:
Lead-acid battery, Ternary Lithium battery, Polymer lithium-ion battery, Lithium ion battery, Storage battery, Water battery, Lithium Iron Phosphate batteries
