Description
Note: This item ships directly from the manufacturer and may arrive separately from other products in your order.

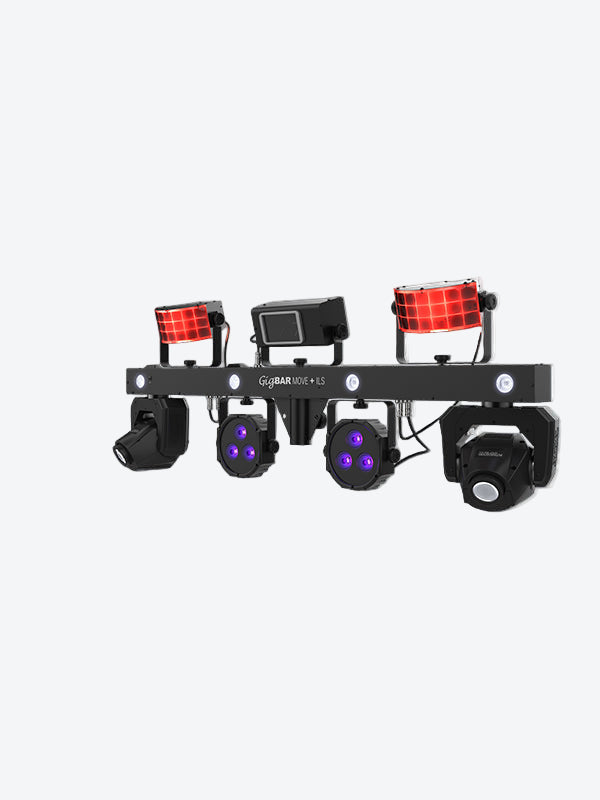

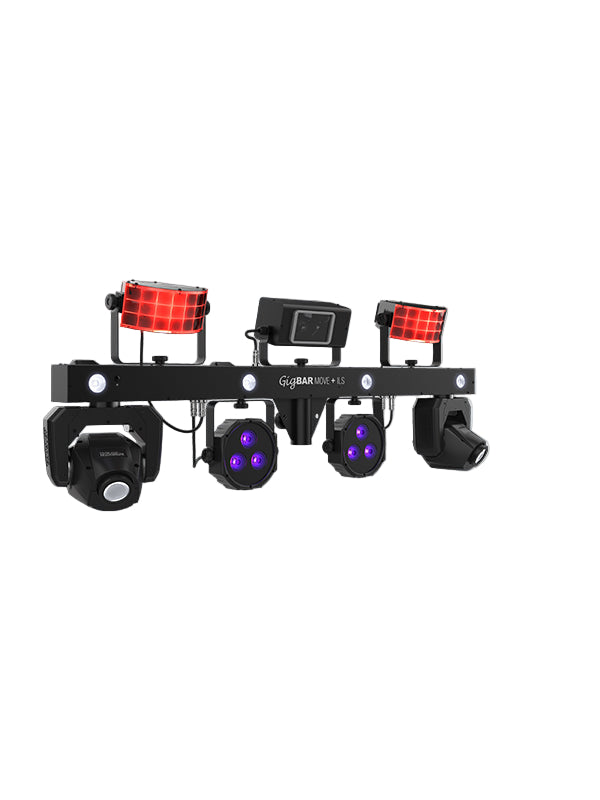

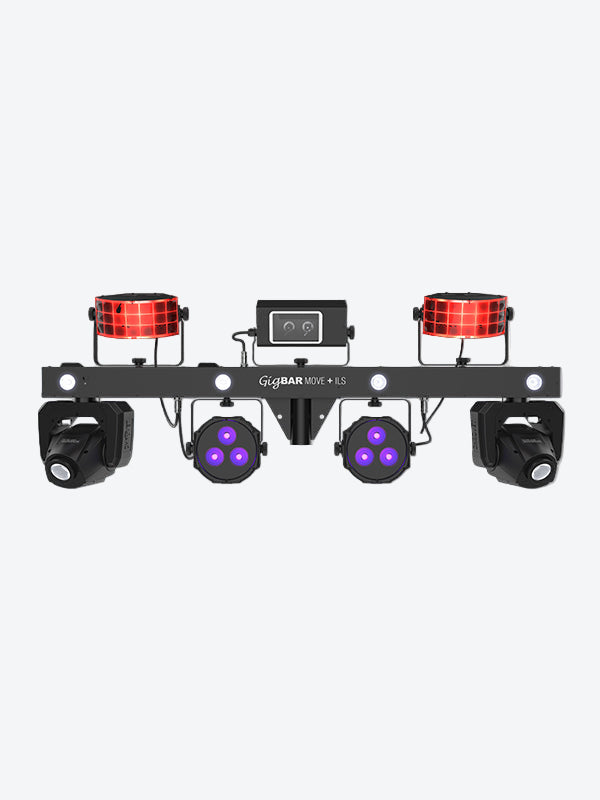

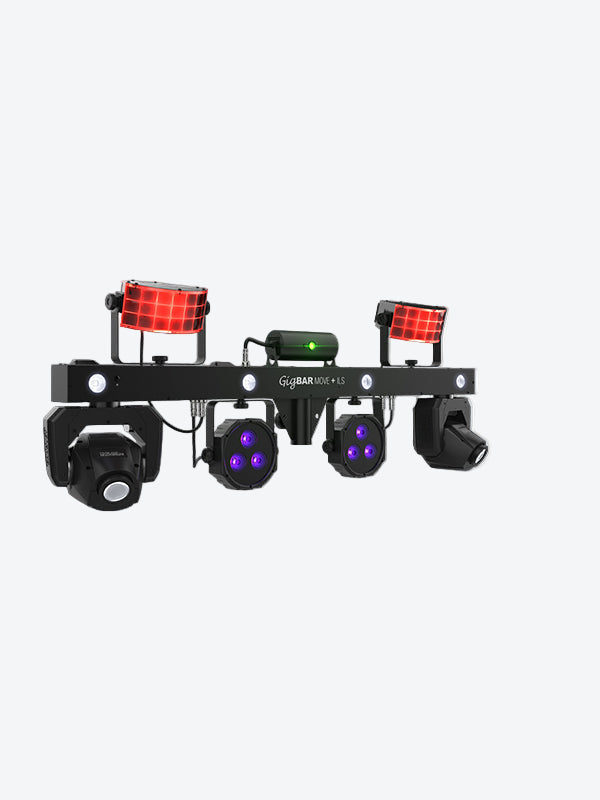

The future of easy lighting synchronization is here with GigBAR Move + ILS. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.
Highlights
-
5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
-

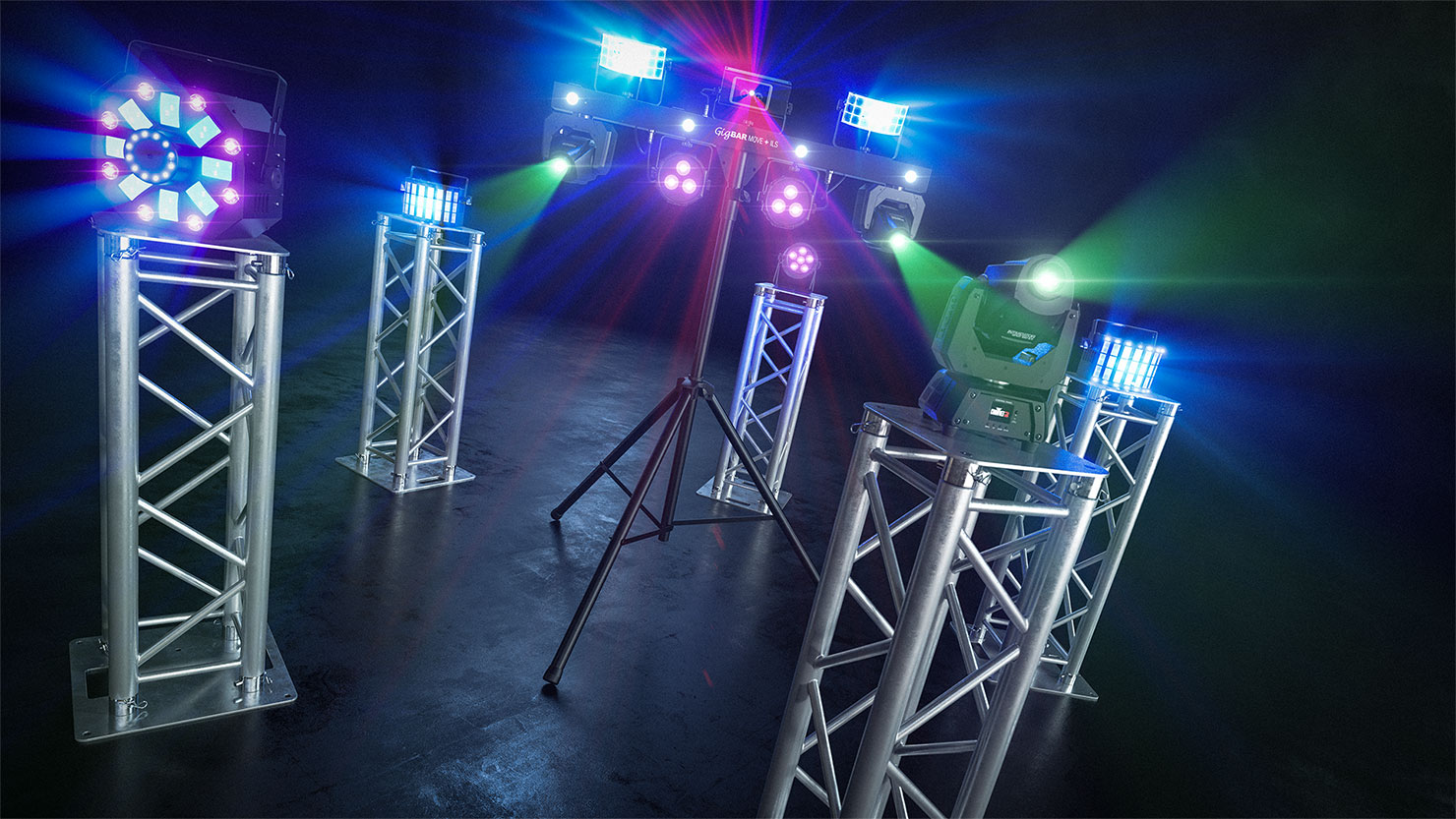

ILS compatibility for use in the ILS ecosystem (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
-
Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
-
Use the included RF remote to trigger the built-in shows without needing line of sight
-
Powerful moving heads with separate color and gobo wheels allow for creative programming
-
Totem Mode keeps the moving heads focused on the dance floor
-
Easy navigation and access to all moving head functions directly from the full-color LCD display
-
Safely mounts to truss or ceilings using the 3/8 in threaded inserts
-

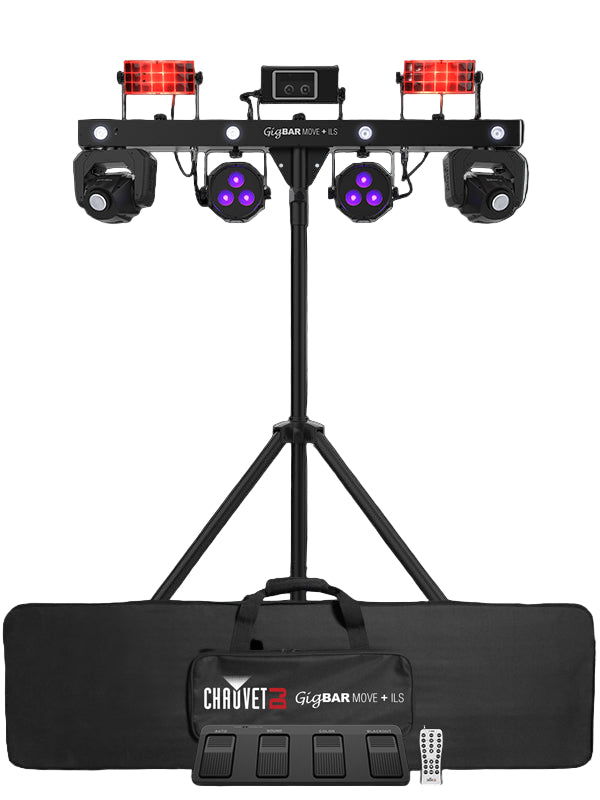

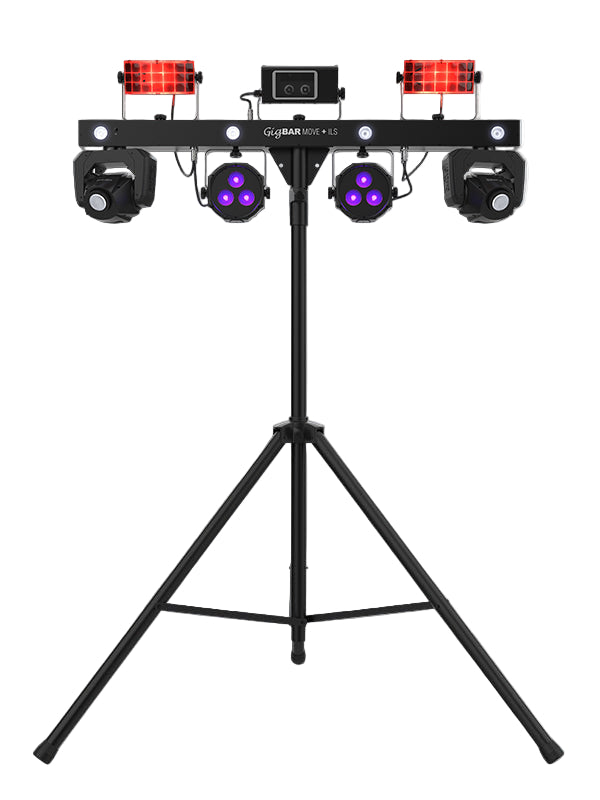

System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
-
Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
-
Individual control of each effect ensures your show looks the way you need it to
-
Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch
Specifications
- DMX Channels:3, 29, or 51
- DMX Connectors:3-pin XLR
- Pan and Tilt:540°/180°
-
Colors:
(moving head): 9 + open, split colors, continuous scroll at variable speeds -
Gobos:
(moving head): 9 + open, continuous scroll at variable speeds -
Light Source:
(pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
(strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
(derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
(moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode - Strobe Rate:0 to 30 Hz
-
Beam Angle:
(moving head): 17°
(pars): 22°
(strobe): 30° -
Field Angle:
(pars): 33°
(strobe): 62° -
Coverage Angle:
(derby): 131°
(laser): 93° - Fits Tripod Size:1.5 in
-
Illuminance:
(pars): 1,205 lux @ 2 m (per par)
(moving head): 5,140 lux @ 2 m (per head)
(strobe): 130 lux @ 2 m - Power Linking:7 units @ 120 V; 12 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current:
250 W, 3 A @ 120 V, 60 Hz
248 W, 1.8 A @ 230 V, 50 Hz - Weight:(bar only) 31 lbs
- Size:43 x 5.7 x 17.7 in
- Approvals: CE, UKCA, RoHS, FCC, FDA
- Stand Height: 4.8 ft to 8.3 ft
- Footswitch Operating Frequency: 433 MHz
- Footswitch Max Unobstructed Distance: 100 ft
- Max Unobstructed Distance (D-Fi): 600 ft
- Footswitch Battery: 9 V alkaline
- Included Controllers: RF remote, wireless footswitch
- Cable Length: 10 ft
- Tripod Thickness: 1.37 in
- Optional Controllers: RF
- RF Remote Battery: 23A, 12 V alkaline
What's Included
- GigBar Move Plus ILS
- Power cord
- RF Remote
- Carry bag
- Tripod
- Tripod carry bag
- Footswitch
